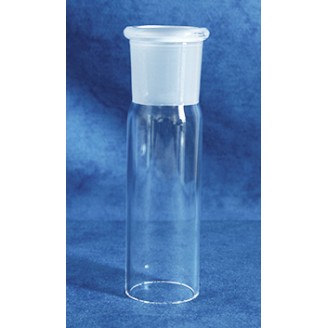

Manufactured in house by our highly skilled glassblowers, Robson Scientific interchangeable conical socket joints provide the ideal jointing system for the majority of laboratory applications.
Utilising the well known cone and socket principle, they permit apparatus to be assembled and dismantled quickly and easily.
Precise manufacturing techniques ensure that Robson conical joints give dependable performance under the most arduous conditions.
Close attention to factors such as surface finish, profile, taper and circular cross section, reduce the possibility of joint ‘seizure’ or leakage.
Joints conform to ISO 383 (BS 572).
Product Code | Cone Size | Approx Tube Bore mm | Approx Tube Dia mm | Overall Length mm |
---|---|---|---|---|
RQSS 10 | 10/19 | 10.00 | 12.00 | 100.00 |
Product Code | Cone Size | Approx Tube Bore mm | Approx Tube Dia mm | Overall Length mm |
---|---|---|---|---|
RQSS 12 | 12/21 | 12.00 | 14.00 | 100.00 |
Product Code | Cone Size | Approx Tube Bore mm | Approx Tube Dia mm | Overall Length mm |
---|---|---|---|---|
RQSS 14 | 14/23 | 14.00 | 16.00 | 100.00 |
Product Code | Cone Size | Approx Tube Bore mm | Approx Tube Dia mm | Overall Length mm |
---|---|---|---|---|
RQSS 19 | 19/26 | 19.00 | 22.00 | 100.00 |
Product Code | Cone Size | Approx Tube Bore mm | Approx Tube Dia mm | Overall Length mm |
---|---|---|---|---|
RQSS 24 | 24/29 | 24.00 | 27.00 | 100.00 |
Product Code | Cone Size | Approx Tube Bore mm | Approx Tube Dia mm | Overall Length mm |
---|---|---|---|---|
RQSS 29 | 29/32 | 29.00 | 32.00 | 120.00 |
Product Code | Cone Size | Approx Tube Bore mm | Approx Tube Dia mm | Overall Length mm |
---|---|---|---|---|
RQSS 34 | 34/35 | 34.00 | 37.00 | 120.00 |
Product Code | Cone Size | Approx Tube Bore mm | Approx Tube Dia mm | Overall Length mm |
---|---|---|---|---|
RQSS 40 | 40/38 | 40.00 | 43.00 | 120.00 |
Product Code | Cone Size | Approx Tube Bore mm | Approx Tube Dia mm | Overall Length mm |
---|---|---|---|---|
RQSS 45 | 45/40 | 45.00 | 49.00 | 120.00 |
Product Code | Cone Size | Approx Tube Bore mm | Approx Tube Dia mm | Overall Length mm |
---|---|---|---|---|
RQSS 50 | 50/42 | 50.00 | 54.00 | 120.00 |
Product Code | Cone Size | Approx Tube Bore mm | Approx Tube Dia mm | Overall Length mm |
---|---|---|---|---|
RQSS 55 | 55/44 | 55.00 | 59.00 | 120.00 |
Product Code | Cone Size | Approx Tube Bore mm | Approx Tube Dia mm | Overall Length mm |
---|---|---|---|---|
RQSS 60 | 60/46 | 60.00 | 64.00 | 120.00 |
Product Code | Cone Size | Approx Tube Bore mm | Approx Tube Dia mm | Overall Length mm |
---|---|---|---|---|
RQSS 65 | 65/48 | 65.00 | 69.00 | 160.00 |
Product Code | Cone Size | Approx Tube Bore mm | Approx Tube Dia mm | Overall Length mm |
---|---|---|---|---|
RQSS 70 | 70/50 | 70.00 | 74.00 | 160.00 |
Product Code | Cone Size | Approx Tube Bore mm | Approx Tube Dia mm | Overall Length mm |
---|---|---|---|---|
RQSS 75 | 75/52 | 75.00 | 79.00 | 160.00 |
Product Code | Cone Size | Approx Tube Bore mm | Approx Tube Dia mm | Overall Length mm |
---|---|---|---|---|
RQSS 80 | 80/54 | 80.00 | 84.00 | 160.00 |
Product Code | Cone Size | Approx Tube Bore mm | Approx Tube Dia mm | Overall Length mm |
---|---|---|---|---|
RQSS 85 | 85/56 | 85.00 | 89.00 | 160.00 |
